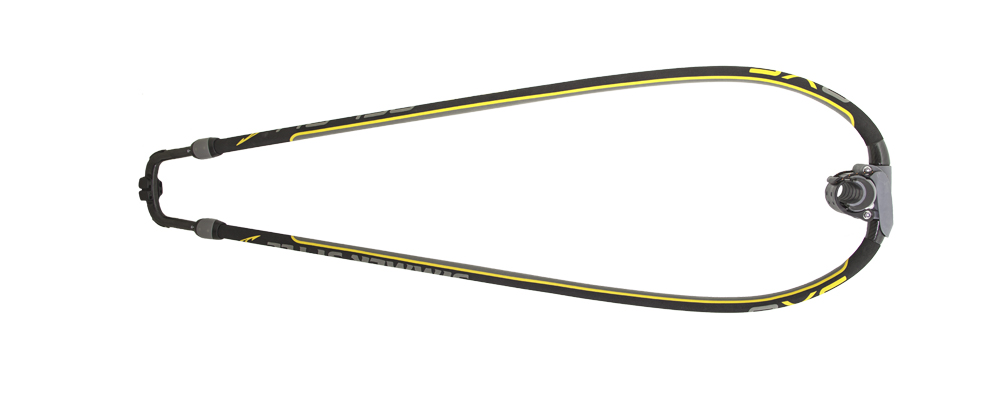

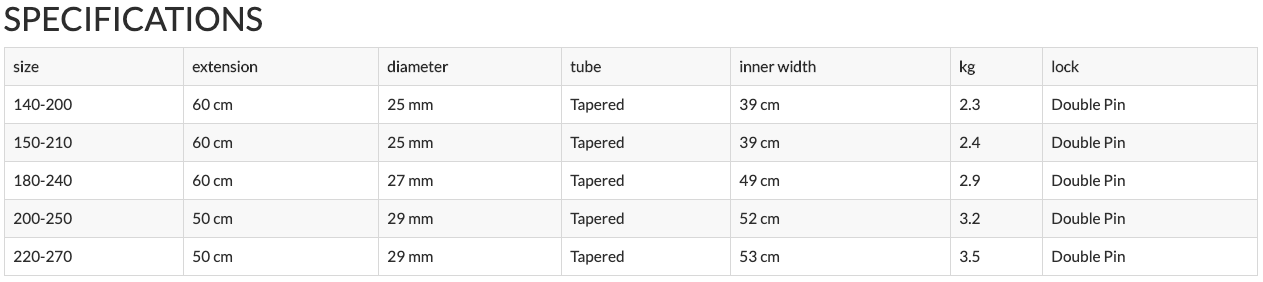

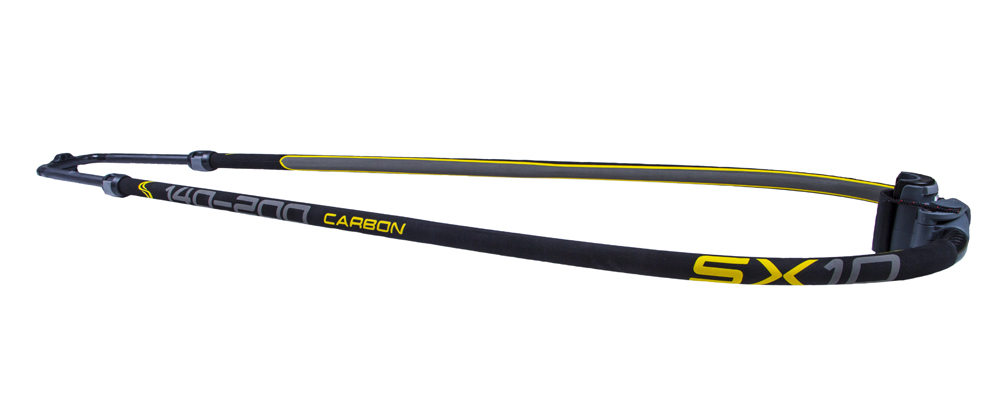

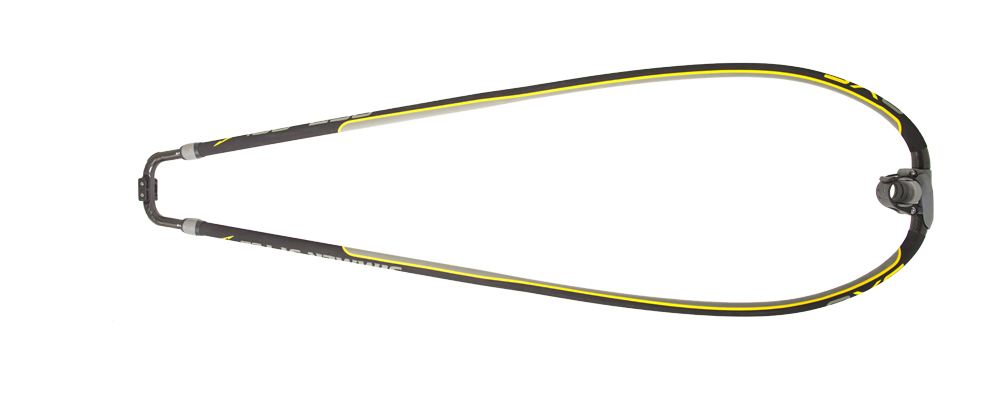

2019 SX10 CARBON BOOM
The SX10 boom is designed to give your rig with the most direct, responsive and light feel possible. The boom is the link between the rider and the rig and it much defines its performance. The SX10 is manufactured from the highest quality pre-preg carbon available in both the body and tail extension. Most modern carbon booms are pre-preg but what is crucial to the performance is the quality of carbon and how the layup is designed. For optimal strength to weight ratio we use inner layers of uni-directional carbon along the boom arm to create extreme stiff spine. On the outside of the carbon tubing we use a carbonfiber weave to make the boom extremely strong. This makes SX10 boom incredible stiff, light and strong. This sandwich technique is much like the layup technique seen in our board construction.
For maximum riding comfort the SX10 features a super thin grip. We vary the diameter used according to the discipline; 25mm for the wave boom, 27mm on the 180-slalom boom, and 29mm on the two larger sizes of the slalom boom. The outline is developed specifically for each size to promote the best rig dynamics possible.
The tail piece on the SX10 140 and 150 comes equipped with a loop system for quick and easy outhaul setting. On the 180, 200 and 220 the tail piece are equipped with a integrated roller trim system.
The Simmer boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, a robust rope hook and a boom lever that allows you to effortless apply high-tension when securing the boom to its correct position.
For absolute pro performance, choose the SX10.

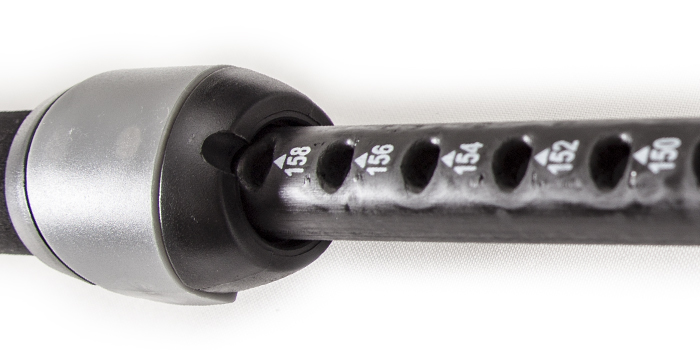

MOULDED HOLES

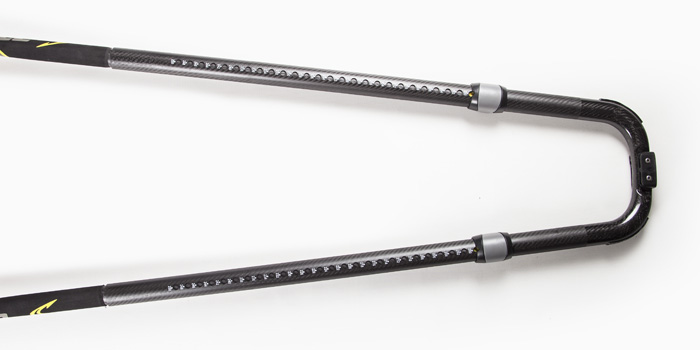

Each hole in the tail-end is integrated into the mould in production. Compared to drilled holes in the tail, moulded holes creates a stronger and stiffer structure. A unique feature on the SX10 140, 150 and 180 booms.

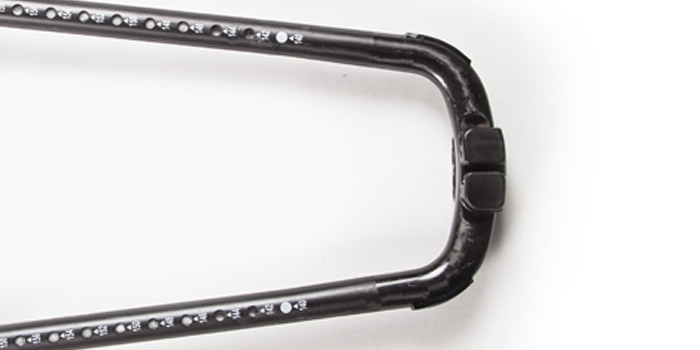

EXTERNAL TAIL FITTINGS
External tail fittings provide two main advantages compared to a integrated fitting solution:
1. Lower weight.
2. Stronger tail end. No weak points in the mould.
OUTSIDE FITTED TAIL END

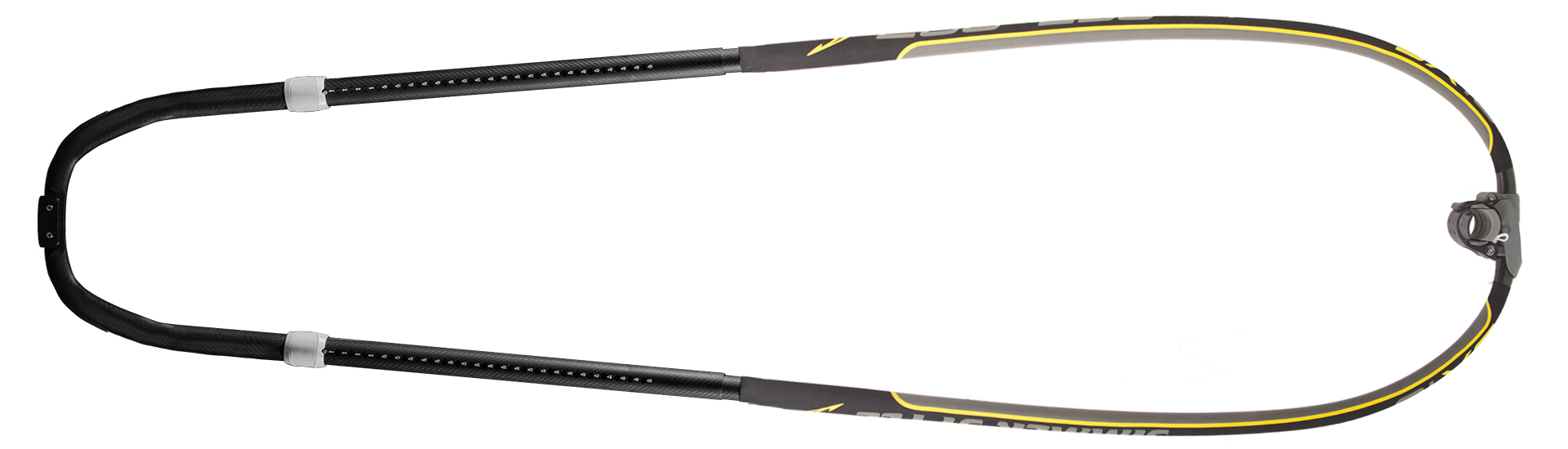

The SX10 200-250 and 220-270 features a outside fitted tail end with increased diameter. This makes these longer of booms incredible stiff and very light-weight. It also allows for a generous adjustment range, with maintained stiffness even when extended to the max.

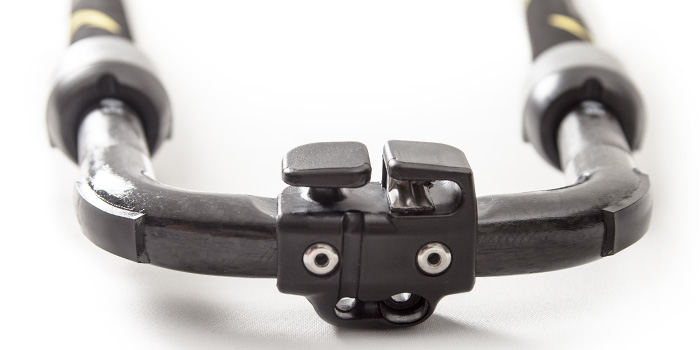

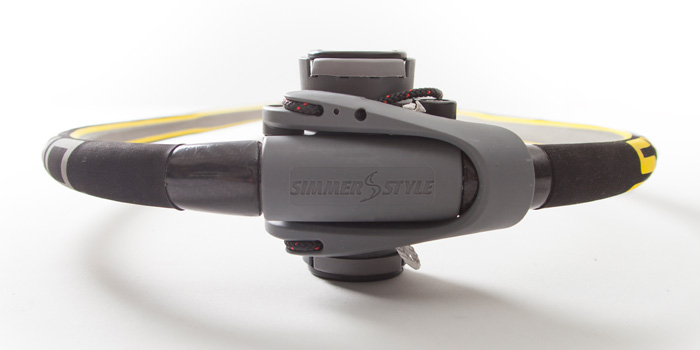

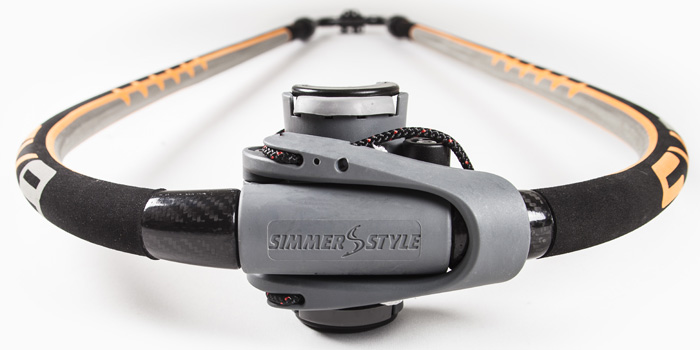

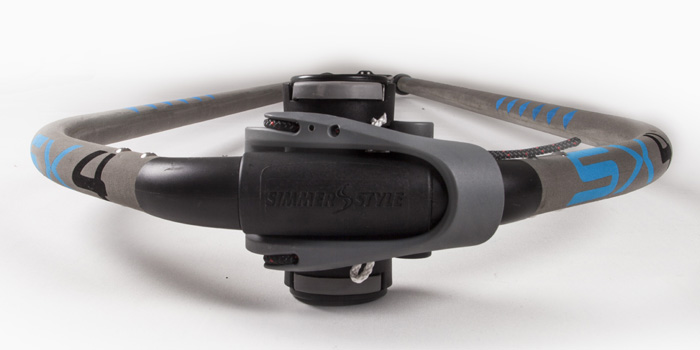

THE BOOM HEAD

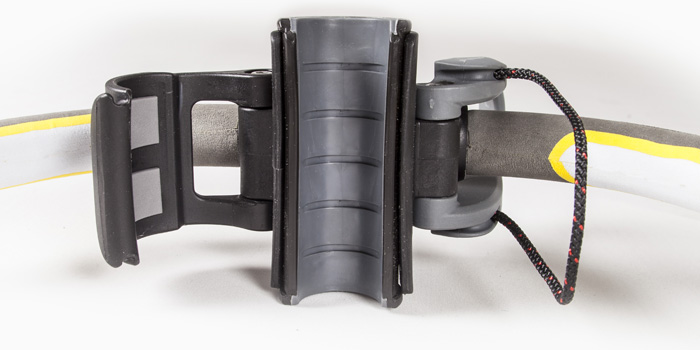

The Simmer boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, the boom will stay in place even during hard landings. A robust rope hook for superb stability and a boom lever that allows you to effortless apply tension when securing the boom to its correct position. On the SX10 140, 150, 180 the boom head includes a RDM adapter.

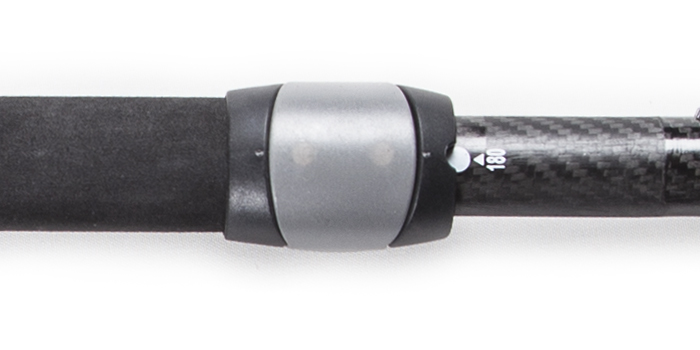

DOUBLE PIN LOCK
For presice load distrubtion the SX boom series all feature the double pin lock system for a stiff connection between the boom body and tail end, even when maximally extended.

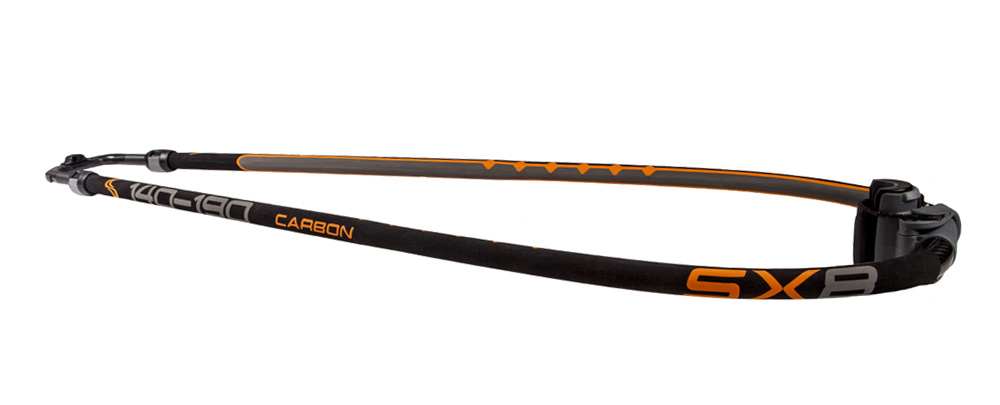

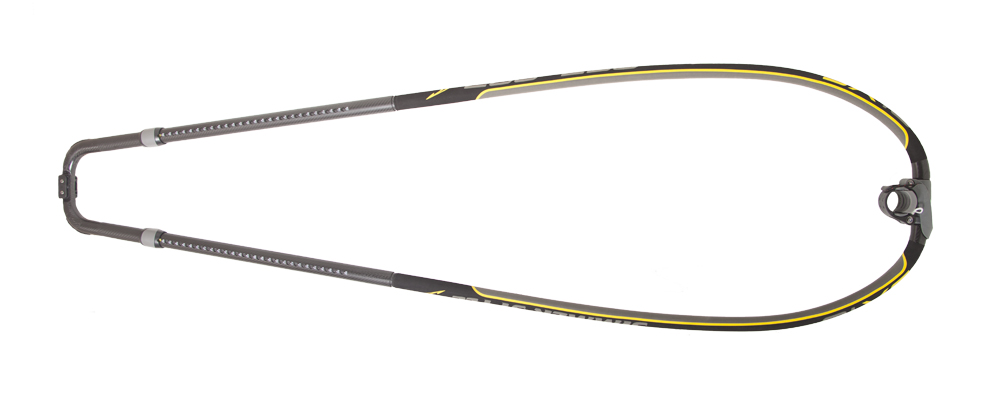

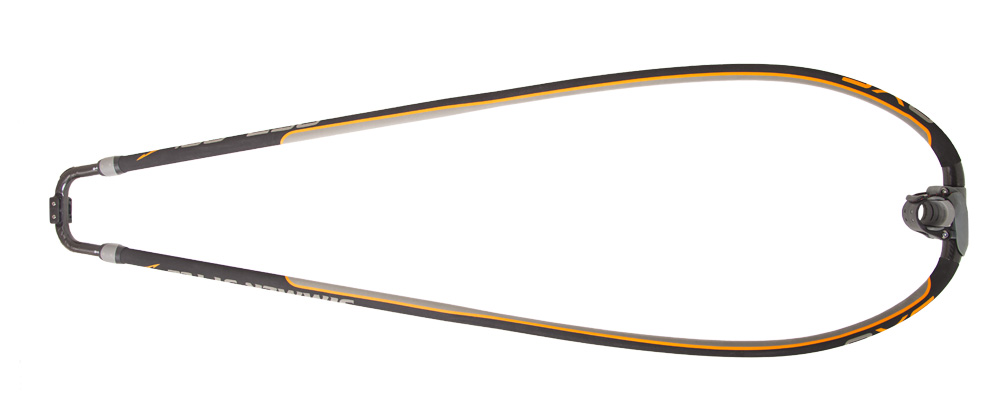

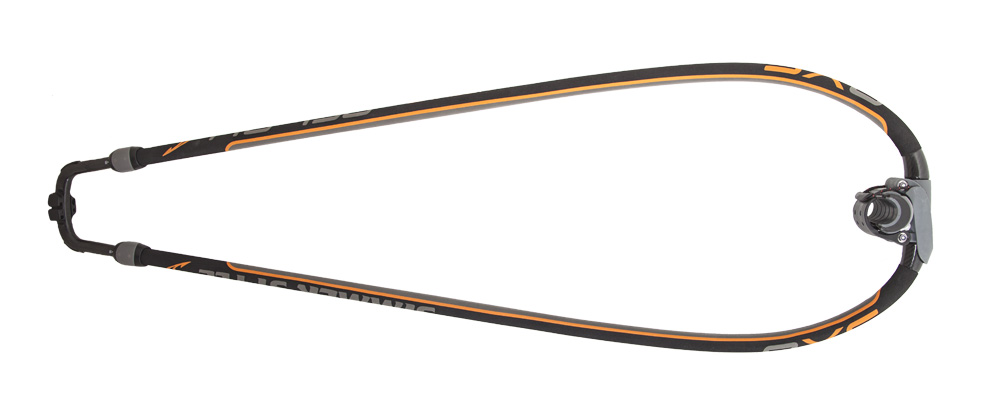

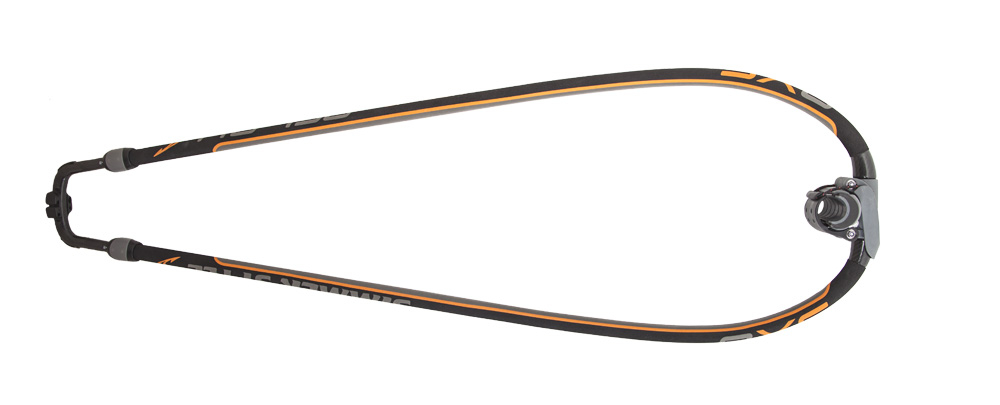

2019 SX8 CARBON BOOM
The SX8 is a high performance pre-preg carbon boom which presents most of the superb quality featres seen on our top of the line SX10 boom, but it is made from a standard grade of pre-preg carbon which allows us make a full body carbon boom at a great price. The monocoque carbon body and and tail extension makes the SX8 extremely stiff, strong and light.
For maximum riding comfort the SX8 features a super thin grip. We vary the diameter used according to the discipline; 25mm for the 140 and 150 boom and 27mm on the 180 boom. The outline is developed specifically for each size to promote the best rig dynamics possible. The boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, a robust rope hook and a boom lever that allows you to effortless apply high-tension when securing the boom to its correct position. The double pin lock system provides optimal load distribution and a stiff connection between the boom monoquoe carbon body and the carbon tail end, even when maximally extended.
Most of the Simmer Style sails are developed on SX8 rig components, so for guaranteed high-end performance at a great price choose SX8.
EXTERNAL TAIL FITTINGS
External tail fittings provide two main advantages compared to a integrated fitting solution:
1. Lower weight.
2. Stronger tail end. No weak points in the mould.

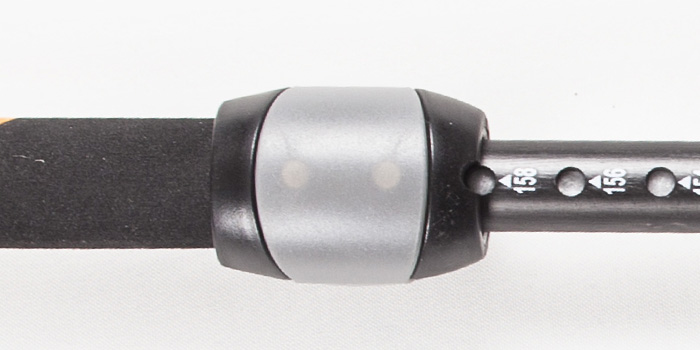

DOUBLE PIN LOCK
For presice load distrubtion the SX boom series all feature the double pin lock system for a stiff connection between the boom body and tail end, even when maximally extended.
RDM SHIM
All SX8 booms include a integrated shim for RDM masts.

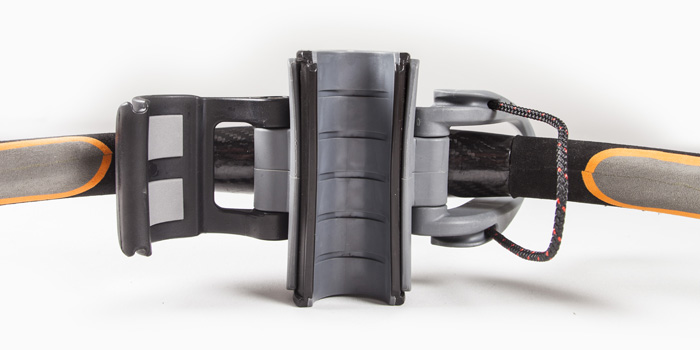

THE BOOM HEAD
The Simmer boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, the boom will stay in place even during hard landings. A robust rope hook for superb stability and a boom lever that allows you to effortless apply tension when securing the boom to its correct position.

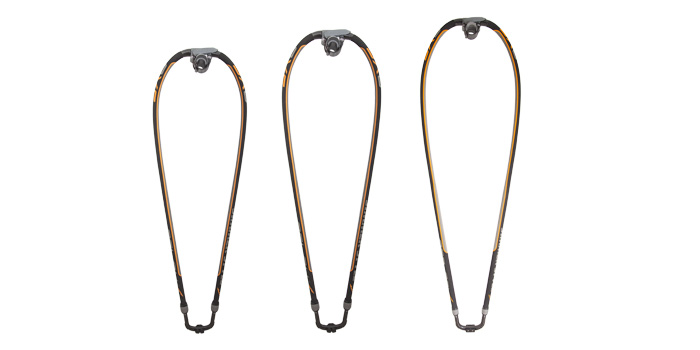

OUTLINE AND TAIL WIDTH
The outline and width of the tail are crucial for the rig to deliver the right balance between power and control. The outline on the 140 and 150 booms are designed specifically for the wavesails with a wider tail and closer riding position in the front. The SX8 180 boom is designed for control flatwater sailing. A wider tail generates more power and a more narrow tail piece more control. This position varies with the wind strength and windsurfing discipline, therefor each boom size have been developed individually.

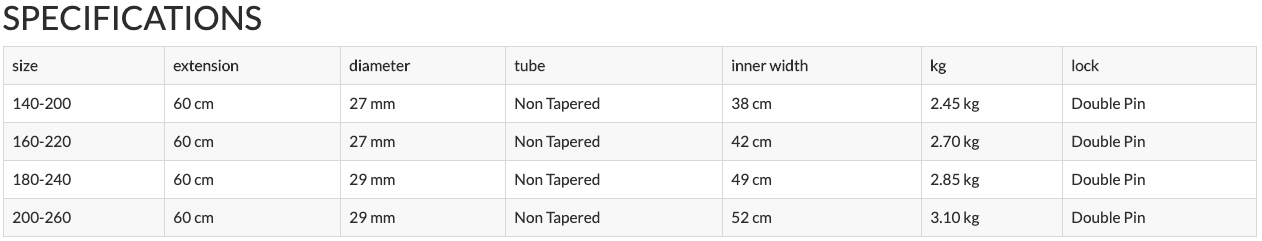

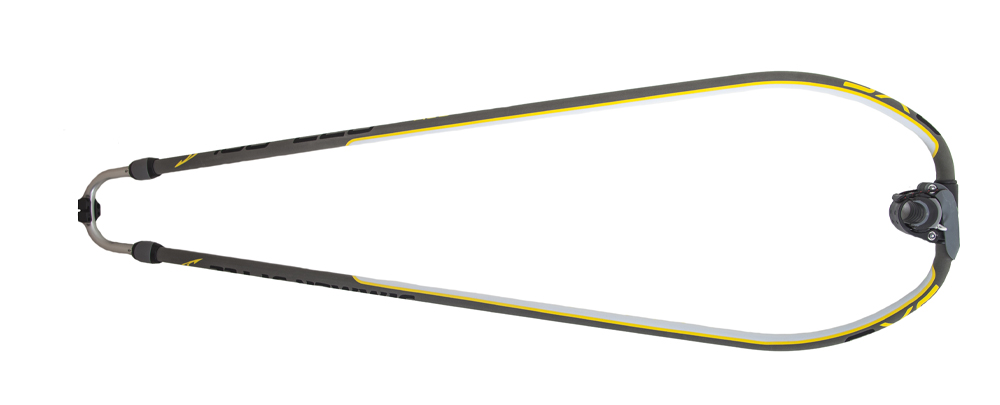

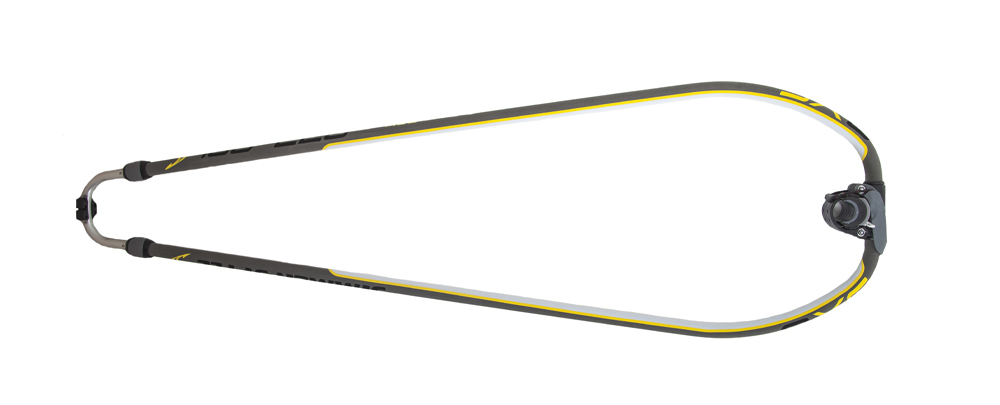

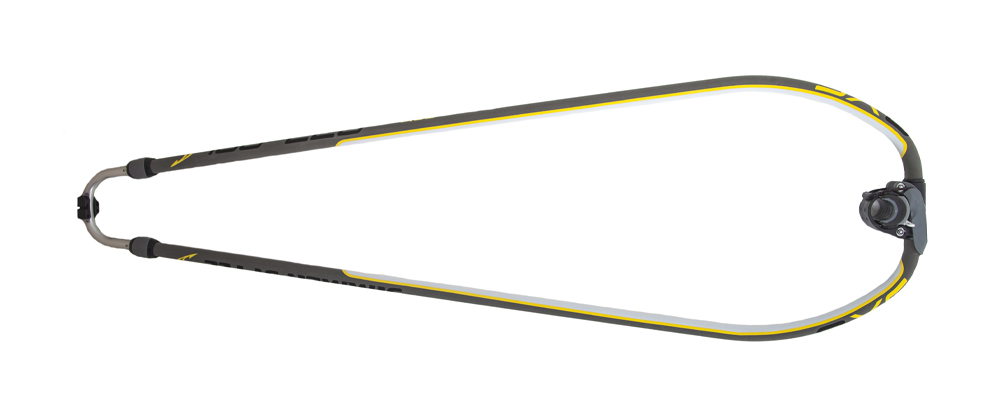

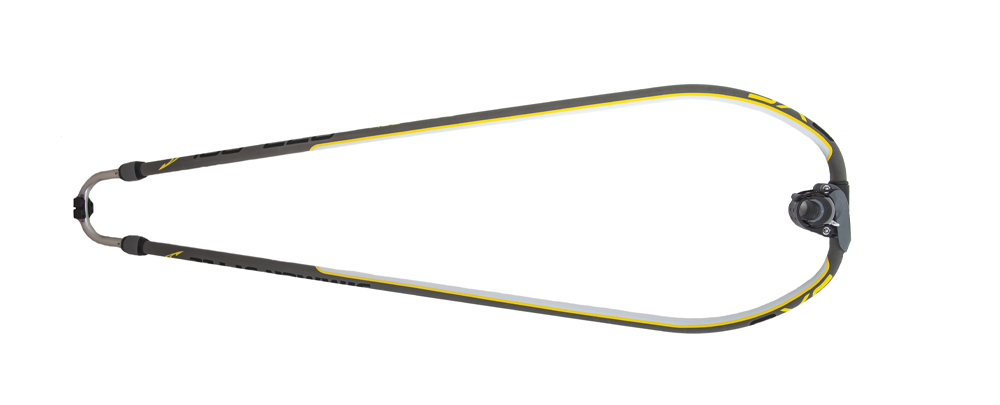

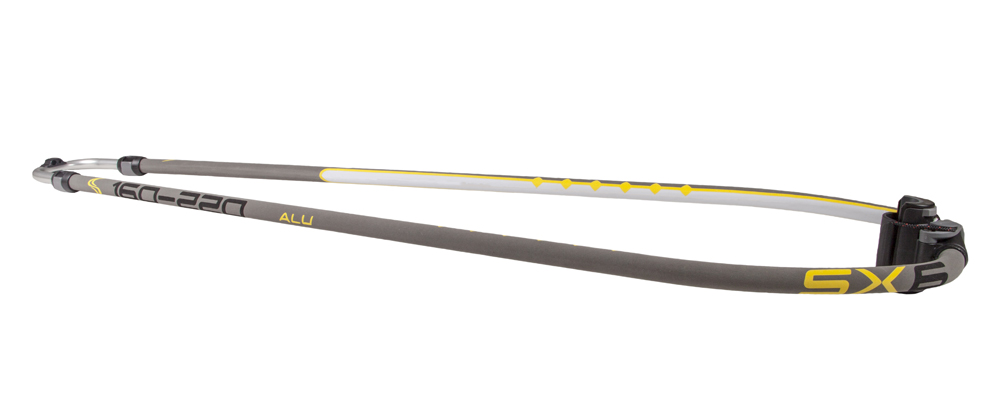

2019 SX6 ALU BOOM
The SX6 presents amazing performance with great stiffness and durability within a T8 alu body and tail extension. The monocoque (one piece) profile gives extraordinary stiffness and strength. The boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, a robust rope hook and a boom lever that allows you to effortless apply high-tension when securing the boom to its correct position. The double pin lock system provides optimal load distribution and a stiff connection between the boom monoquoe body and tail end, even when maximally extended. All graphics on the EVA are die-cut so no graphics will peel off, even after years of wear n'tear.
Get out there and go for it with the SX6 boom, durability and performance that you can trust!

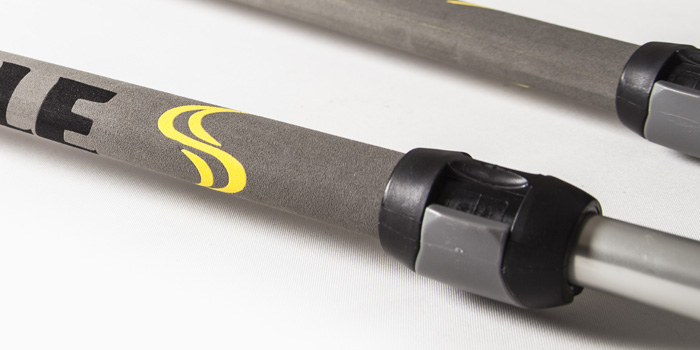

DOUBLE PIN LOCK
For presice load distrubtion the SX boom series all feature the double pin lock system for a stiff connection between the boom body and tail end, even when maximally extended.
BOOM PROFILE
The modern bend curve that ensures a uniform pull onto front- and backhand giving a natural ergonomic position while sailing, automatically positioning the sail at the right angle for the wind to enter and exit the sail. This position varies with the wind strength and windsurfing discipline, so each boom size needs to be developed accordingly.
RDM SHIM
All SX6 booms up to 180 include a integrated shim for RDM masts for secure fit on both RDM and SDM masts.

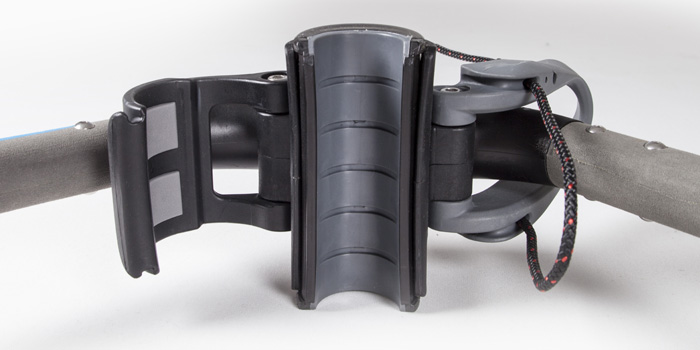

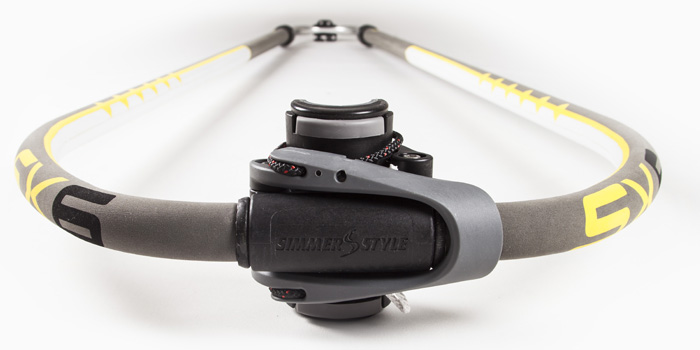

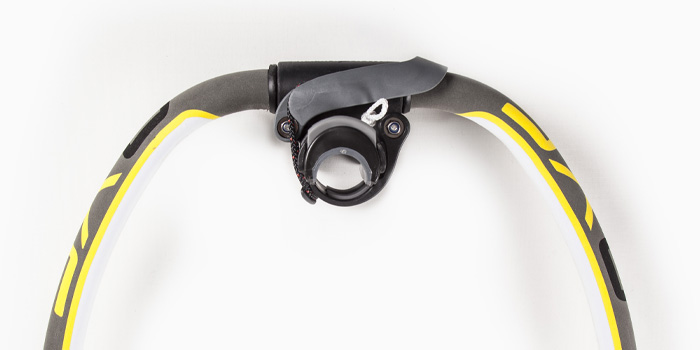

THE BOOM HEAD
The boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, the boom will stay in place even during hard landings. A robust rope hook for superb stability and a boom lever that allows you to effortless apply tension when securing the boom to its correct position.
OUTLINE AND TAIL WIDTH
The outline and width of the tail are crucial for the rig to deliver the right balance between power and control. The outline on the 140 and 160 booms are designed specifically for wavesailing and bump n'jump sailing where you want to be closer to the rig for control. The 180 and 200 have a wider outline to get momentum on the rig to go really fast. A wider tail generates more power and a more narrow tail piece more control. This position varies with the wind strength and windsurfing discipline, therefor each boom size have been developed individually.

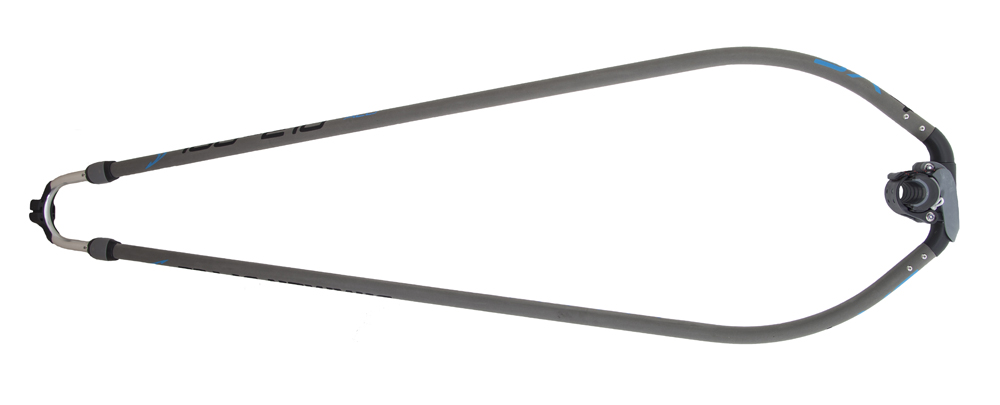

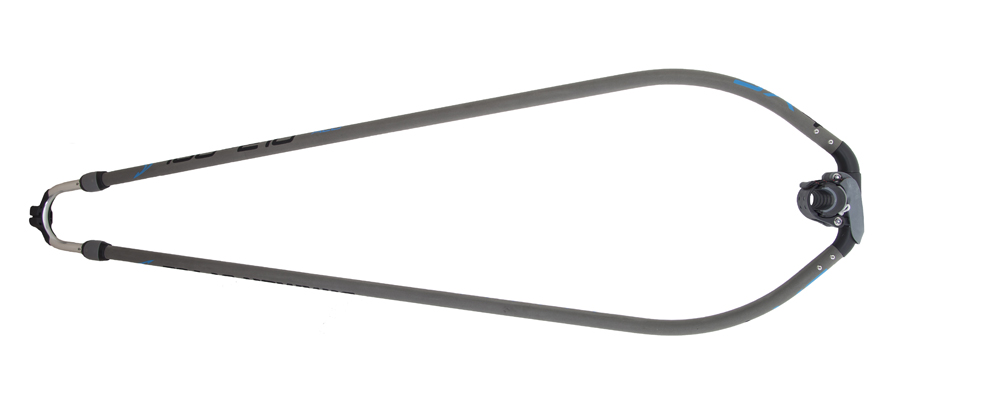

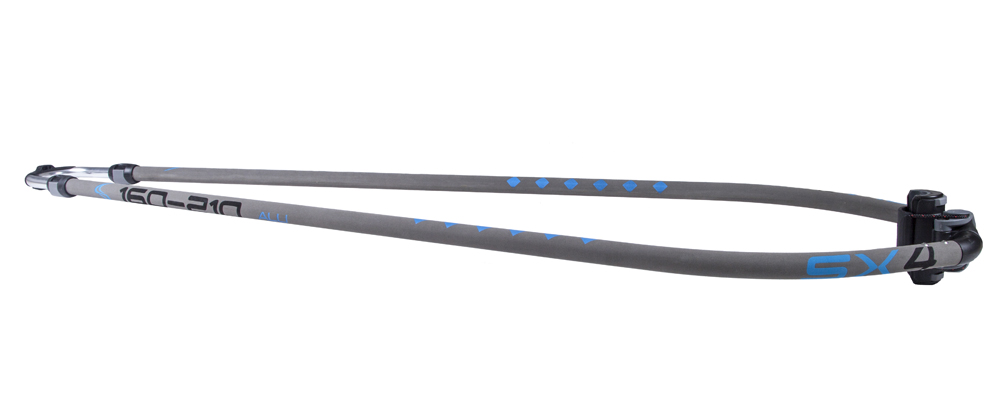

2019 SX4 ALU BOOM
The SX4 is our entry level boom. If you are starting out your windsurf journey, this is the boom for you. It features a super stable quick lock front which works on both SDM and RDM masts. A thin grip so even riders with smaller hands can get a sturdy grip. As on our other booms the SX4 has the double pin lock system which gives a very stiff connection between the boom body and tail end, even when maximally extended. The generous tail extension will cover most of sail sizes you need to get going.
The SX4 series is all about getting out on the water and enjoying.

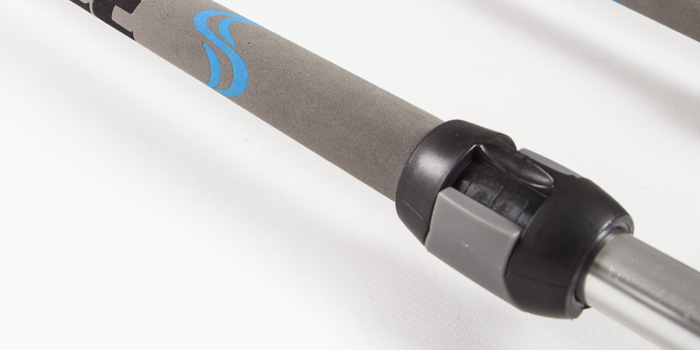

DOUBLE PIN LOCK
For presice load distrubtion the SX boom series all feature the double pin lock system for a stiff connection between the boom body and tail end, even when maximally extended.
RDM SHIM
All SX4 booms include a integrated shim for RDM masts for secure fit on both RDM and SDM masts.
THE BOOM HEAD
The boom head is designed for maximum grip to the mast. With a high friction contact surface against the mast, the boom will stay in place even during hard landings. A robust rope hook for superb stability and a boom lever that allows you to effortless apply tension when securing the boom to its correct position

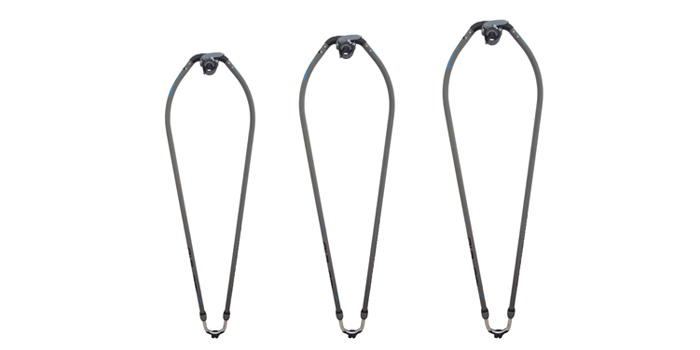

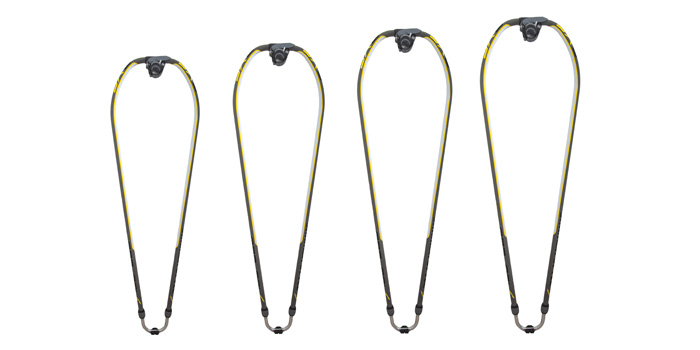

BOOM OUTLINE
The outline and width of the tail are crucial for the rig to deliver the right balance between power and control. The outline on the 140 and 160 booms are designed specifically bump n'jump sailing where you want to be closer to the rig for control. The 180 booms has a wider outline to get momentum on the rig to go really fast. A wider tail generates more power and a more narrow tail piece more control. This position varies with the wind strength and windsurfing discipline, therefor each boom size have been developed individually.
SIMMER STYLE MASTS

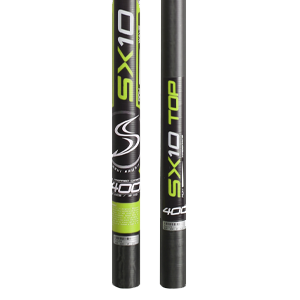

SX10 Mast

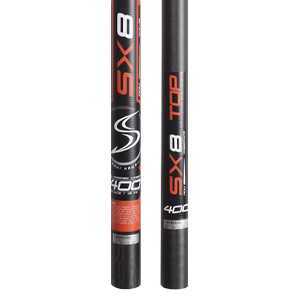

SX8 Mast

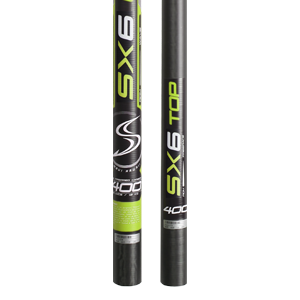

SX6 Mast

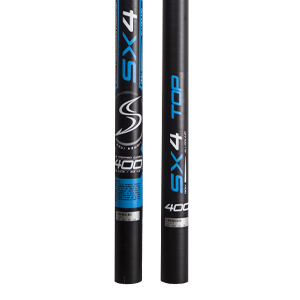

SX4 Mast

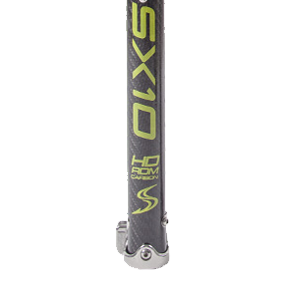

SX10 Extension

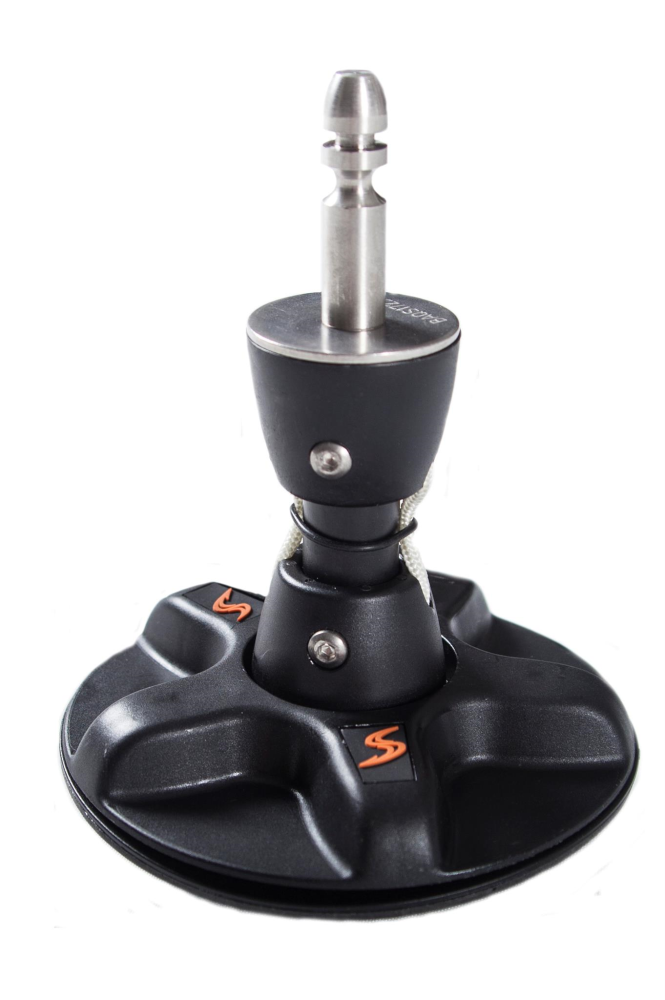

SX Tendon Base
SX8 Extension

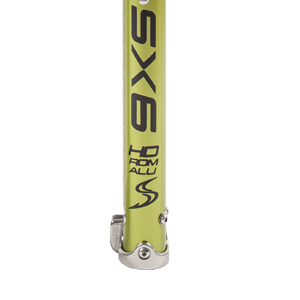

SX6 Extension
